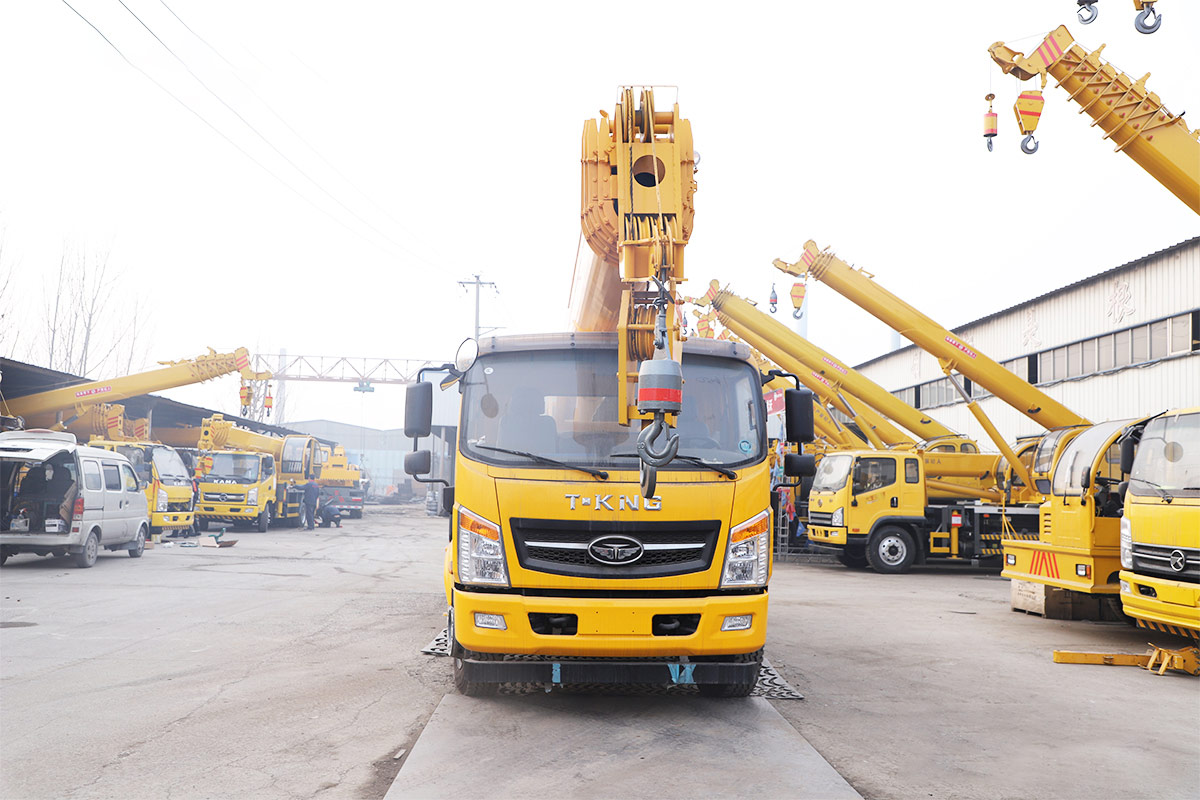

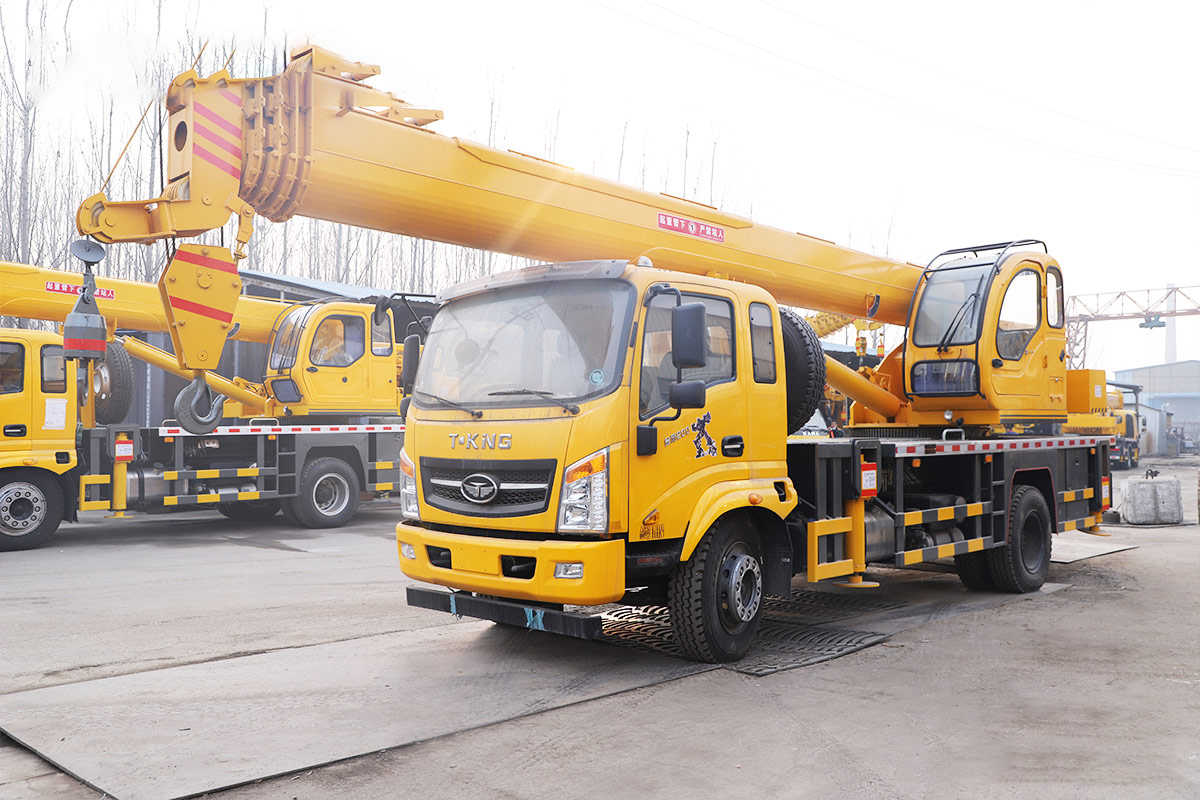

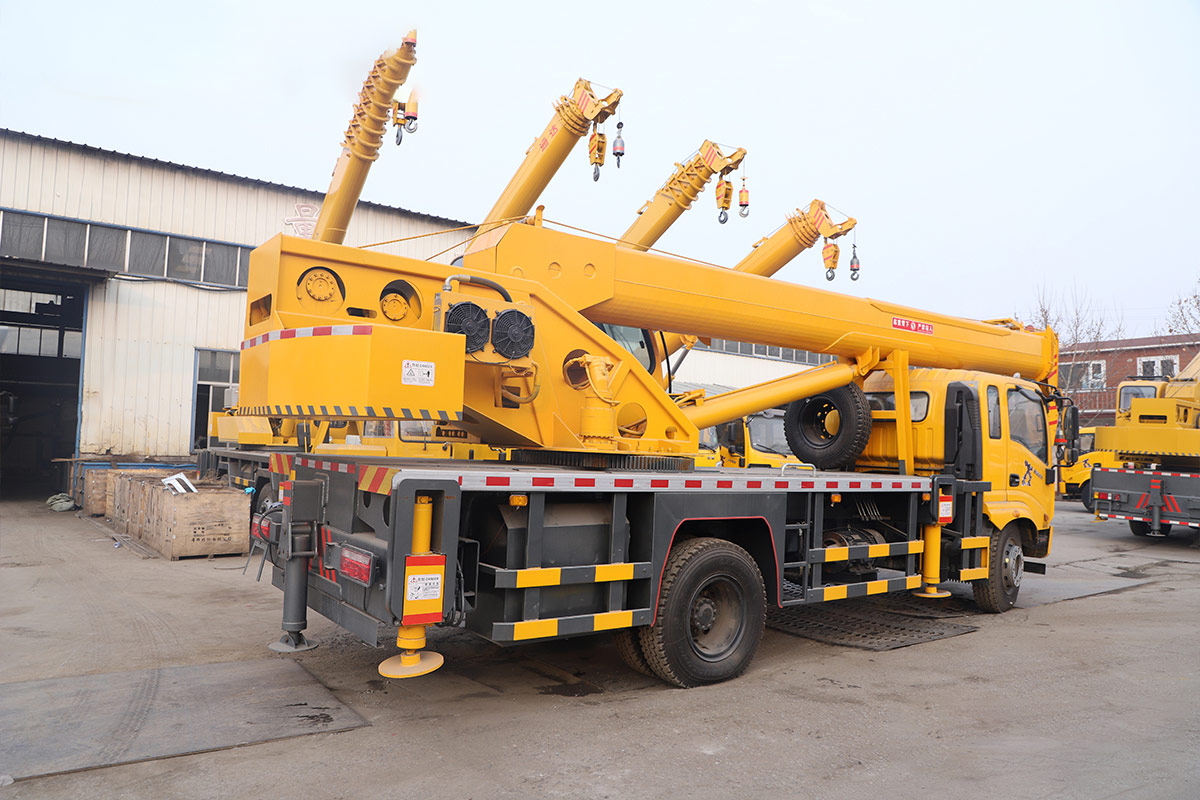

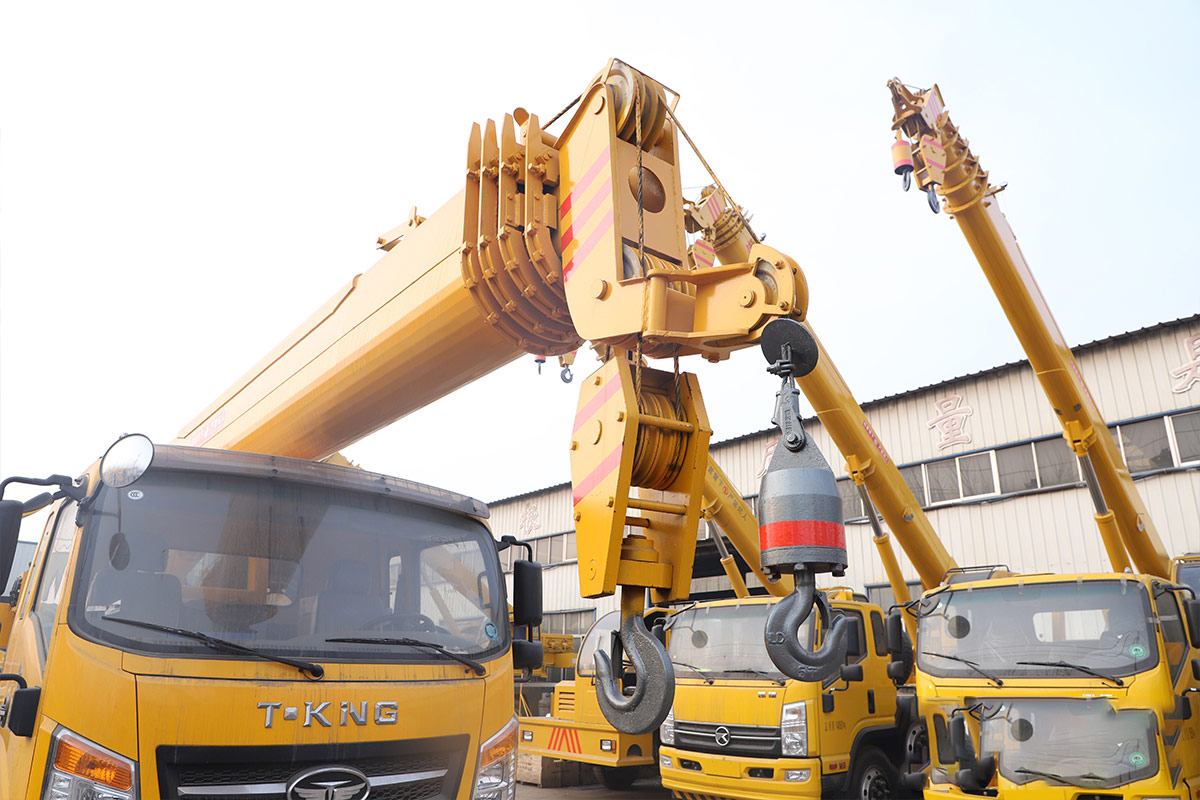

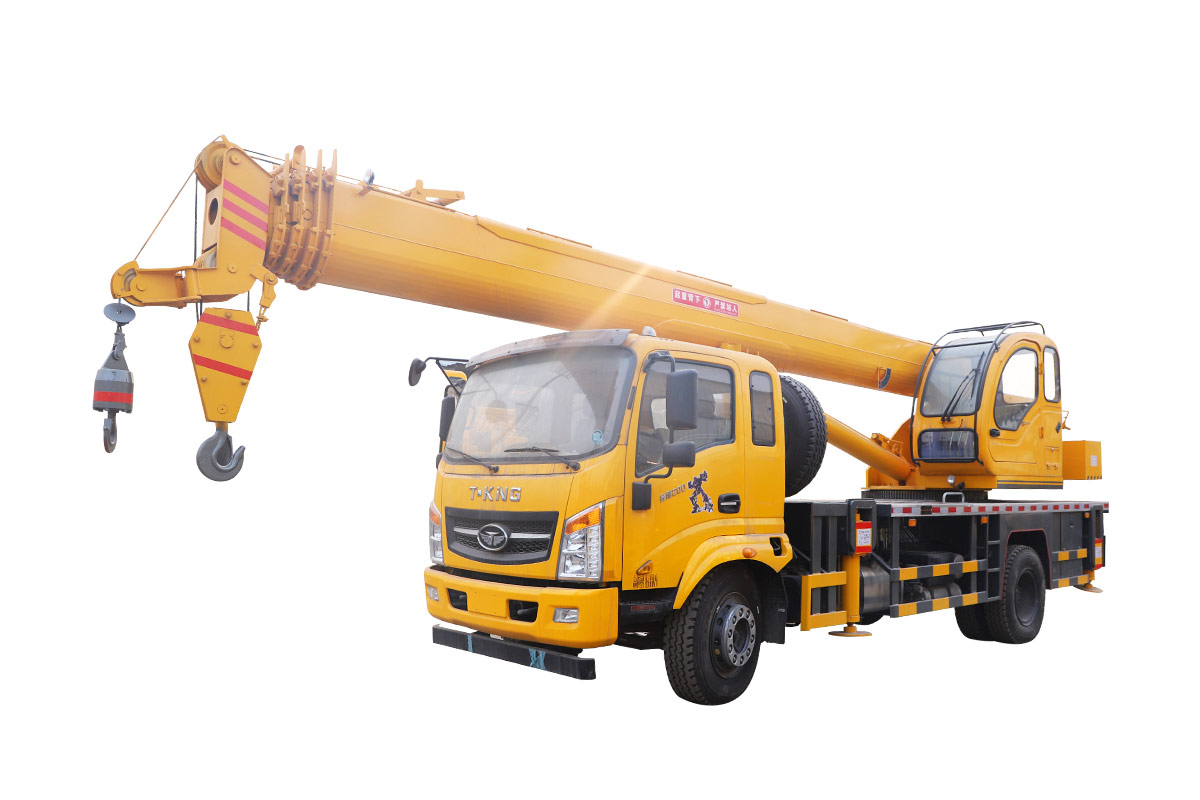

HWTJ16T Truck Crane

Factory Direct
Training on Arrival
One-year warranty
Swing speed: 0-3rap
Engine model: YCS0400-48
Power: 147kw200hp
Product Introduction

1. The slewing center is equipped with a touch-type electric disc, which can rotate 360 degrees infinitely.

2. Boom telescopic limit marking and automatic stop report, limit switch three insurance.

3. Hydraulic double-section outriggers, extra-large outrigger span, larger working range and safer. The outrigger cylinder is ejected with small clearance.

4. U-shaped section of the arm body, anti-twist design, more uniform force, better telescopic guidance, more stable telescopic.

ModelHWTJ16T
Chassis modelsTANGJUN4500
Max. loading capacity16000kg
Crane jib U type8m*5 section (rope inside)
Max. lifting height36.6m
Outrigger span (mm)6500*5400
Overall Dimensions11030*2500*3440
Motor Power15kw
Lifting speedThree pumps combined
Swing speed0-3rap
Engine modelYCS0400-48
Power147kw200hp
Tire10.00-R20
Reducer modelPlunger planetary reducer
Steering machanismHydraulic Power Steering
Braking SystemAir brake
GearboxFaust 8-speed gearbox
Weight18000kg
CabXCMG Cab
Emission StandardsChina Ⅵ
Wheelbase4500
Main hoisting mechanism16t Inclined shaft winch
Auxiliary hoisting mechanism12t Inclined shaft winch
Driving speed85km/h

Quote now for the best price.

Company Profile

Shandong Hengwang Group, founded in 2011 in the cultural city of Jining, Shandong, has grown into a comprehensive innovative technology enterprise integrating R&D, production, trade, and logistics. With a factory area exceeding 300,000 square meters and over 2,000 employees, the company completed and put into operation its billion-yuan Intelligent Manufacturing Base in 2024, reinforcing its strong manufacturing foundation.

Adhering to an "innovation-driven, quality-first" philosophy, Hengwang develops and exports over 40 categories of machinery products to more than 180 countries and regions. Holding over 200 patents and multiple international certifications, the company provides customers with integrated solutions and high-quality service, consistently striving towards its vision of building a century-old brand with outstanding value.
