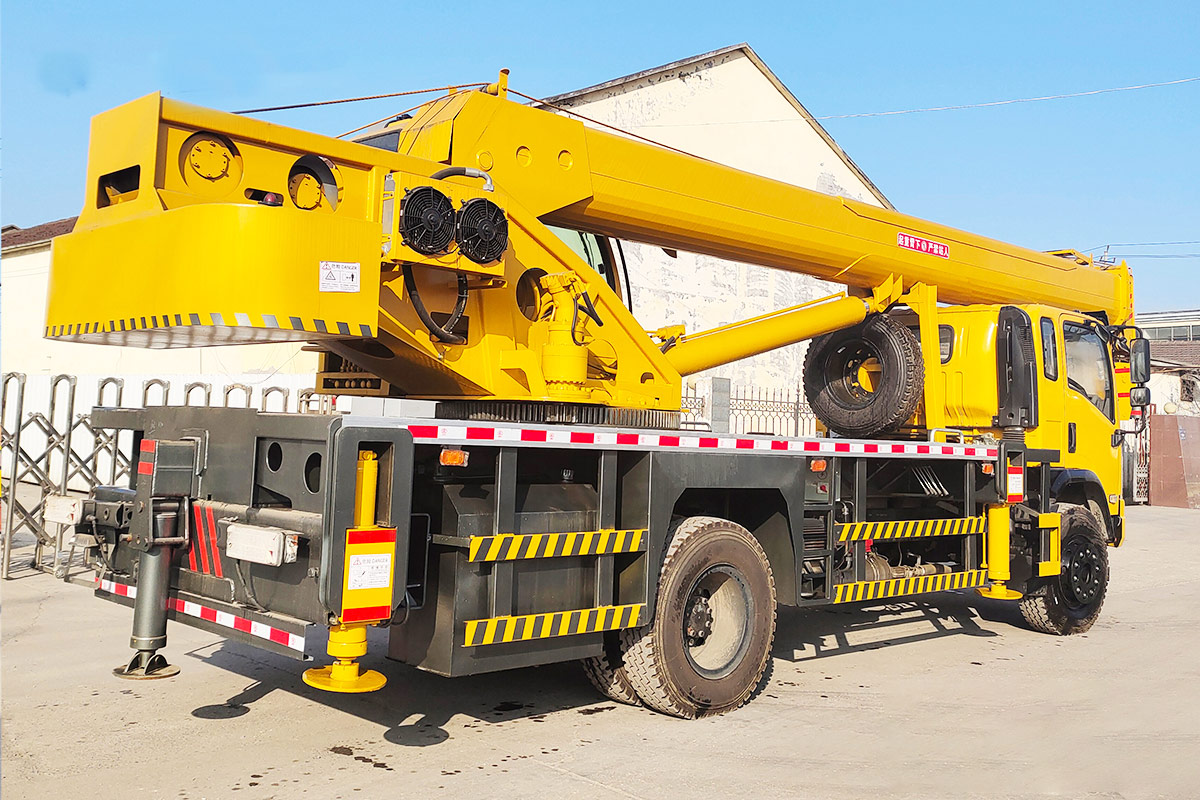

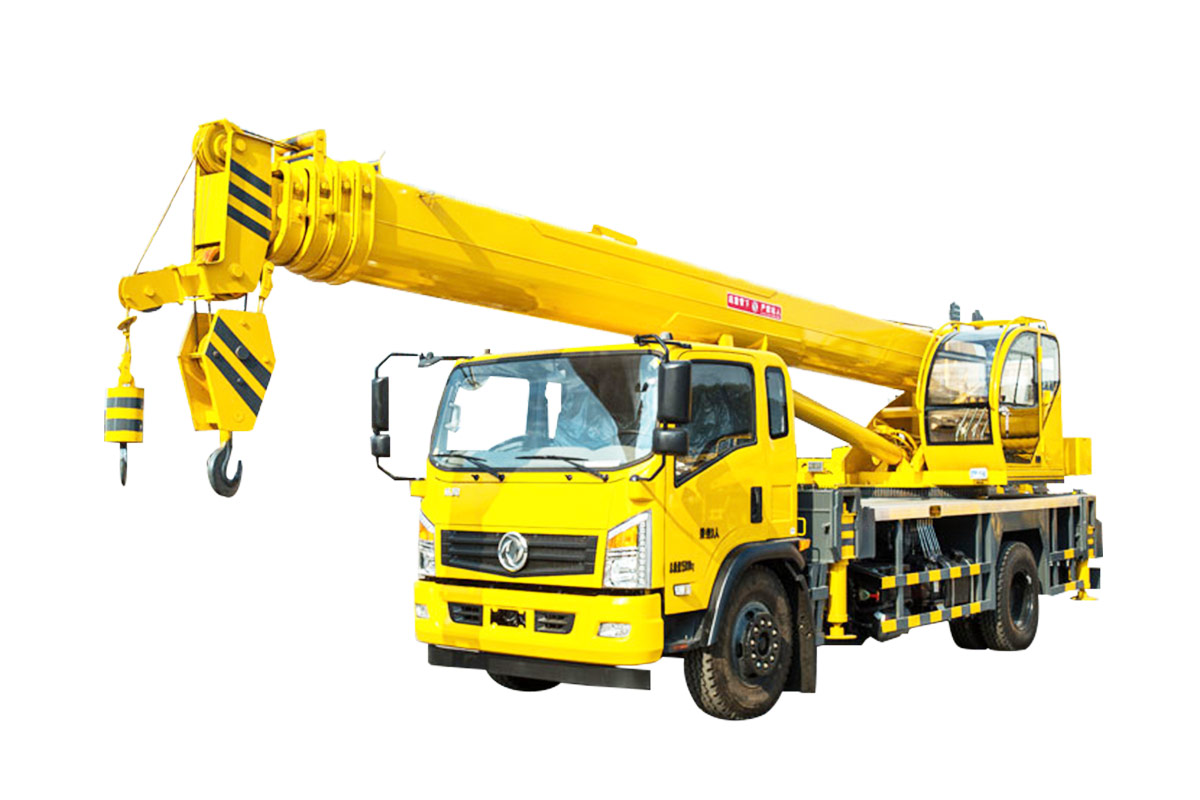

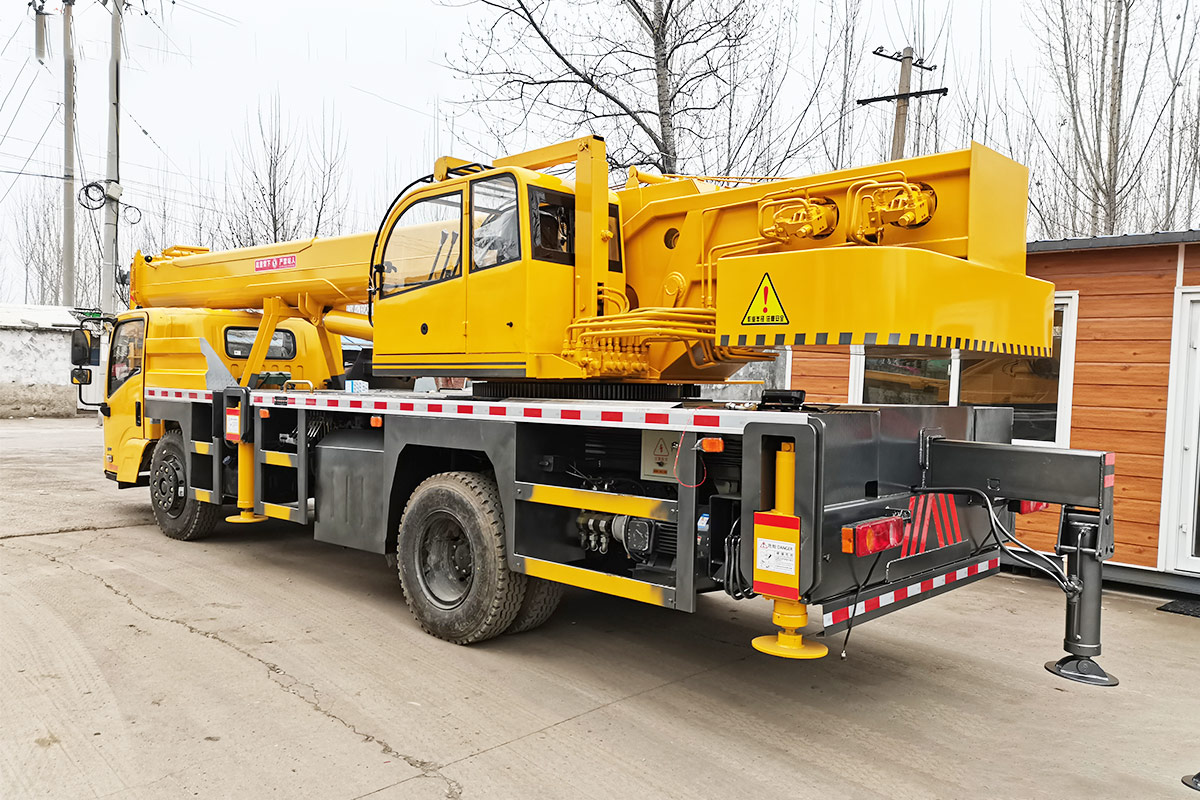

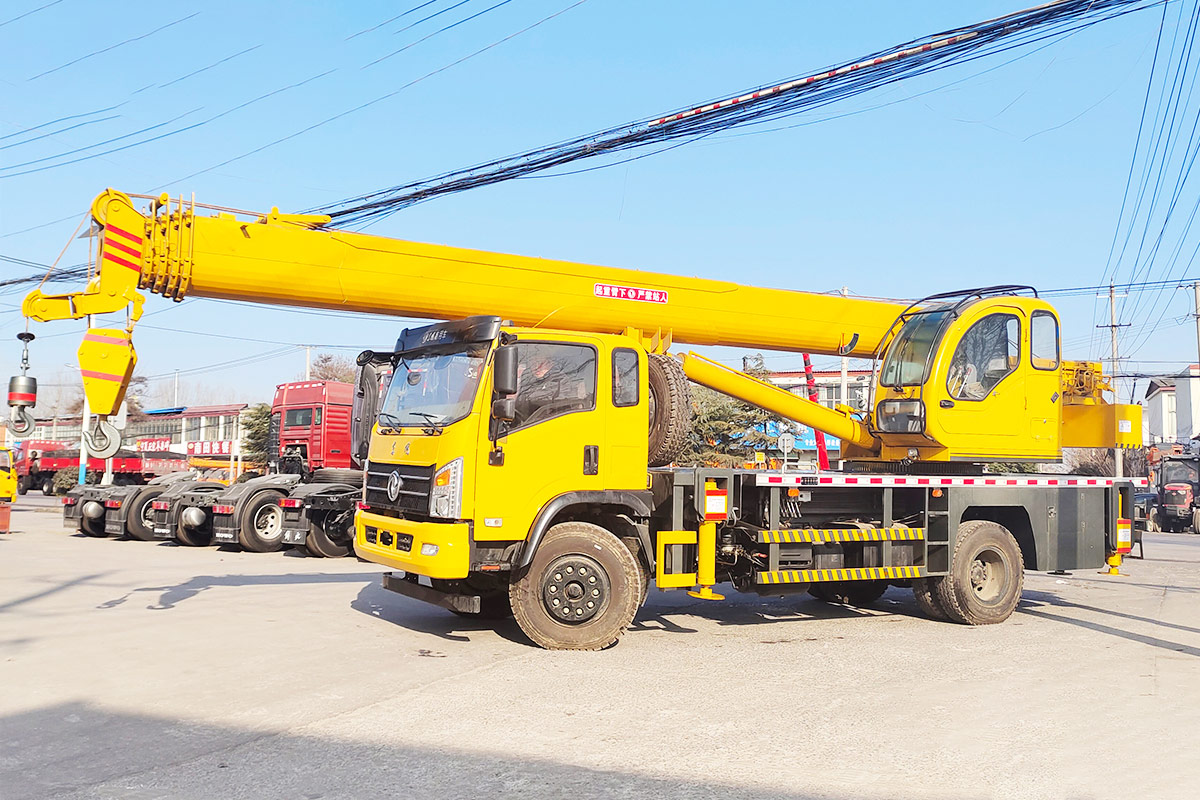

HWQY16T Truck Crane
Power (kw hp): 95KW（130hp）
Emission Standards: China Ⅲ
1. Boom telescopic limit marking and automatic stop report, limit switch three insurance.
2. Hydraulic double-section outriggers, extra-large outrigger span, larger working range and safer. The outrigger cylinder is ejected with small clearance.
3. Double hooks and double winches to improve work efficiency. The winch adopts high-strength multi-strand anti-rotation phosphor-plated steel wire rope, which has long life, high strength and more stable operation.
4. U-shaped section of the arm body, anti-twist design, more uniform force, better telescopic guidance, more stable telescopic
| Model | HWQY16T |
| Chassis models | XCMG DONGFENG |
| Weight | 16000kg (Without counterweight) |
| Overall Dimensions | 10.2m*2.45m*3.5m |
| Wheelbase | 3800mm |
| Max. loading capacity | 16000kg |
| Max. lifting height | 30m、35m |
| Gearbox model | 6-speed |
| Power (kw hp) | 95KW (130hp) |
| Emission Standards | China Ⅲ |
| Braking System | Air brake |
| Steering machanism | Hydraulic Power Steering |
| Boom section number | 7m X 5 section rope inside 7m X 6 section rope outside |
| Main hoisting mechanism | 16T |
| Auxiliary hoisting mechanism | 12T |
| slewing mechanism | Planetary reducer |
| Outrigger | 5 full hydraulic outriggers (double section) |
| Outrigger span (mm) | 6250mm |
| Protective device | two way hydraulic control |
| Number of work lights | 2 |
| Hydraulic pump | double pump 50/40 |
| Oil and electricity dual use | 15KW IP6pole motor 40/32 |
| Tire | 900 |
Quote now for the best price.
Company Profile
Shandong Hengwang Group, founded in 2011 in the cultural city of Jining, Shandong, has grown into a comprehensive innovative technology enterprise integrating R&D, production, trade, and logistics. With a factory area exceeding 300,000 square meters and over 2,000 employees, the company completed and put into operation its billion-yuan Intelligent Manufacturing Base in 2024, reinforcing its strong manufacturing foundation.
Adhering to an "innovation-driven, quality-first" philosophy, Hengwang develops and exports over 40 categories of machinery products to more than 180 countries and regions. Holding over 200 patents and multiple international certifications, the company provides customers with integrated solutions and high-quality service, consistently striving towards its vision of building a century-old brand with outstanding value.
