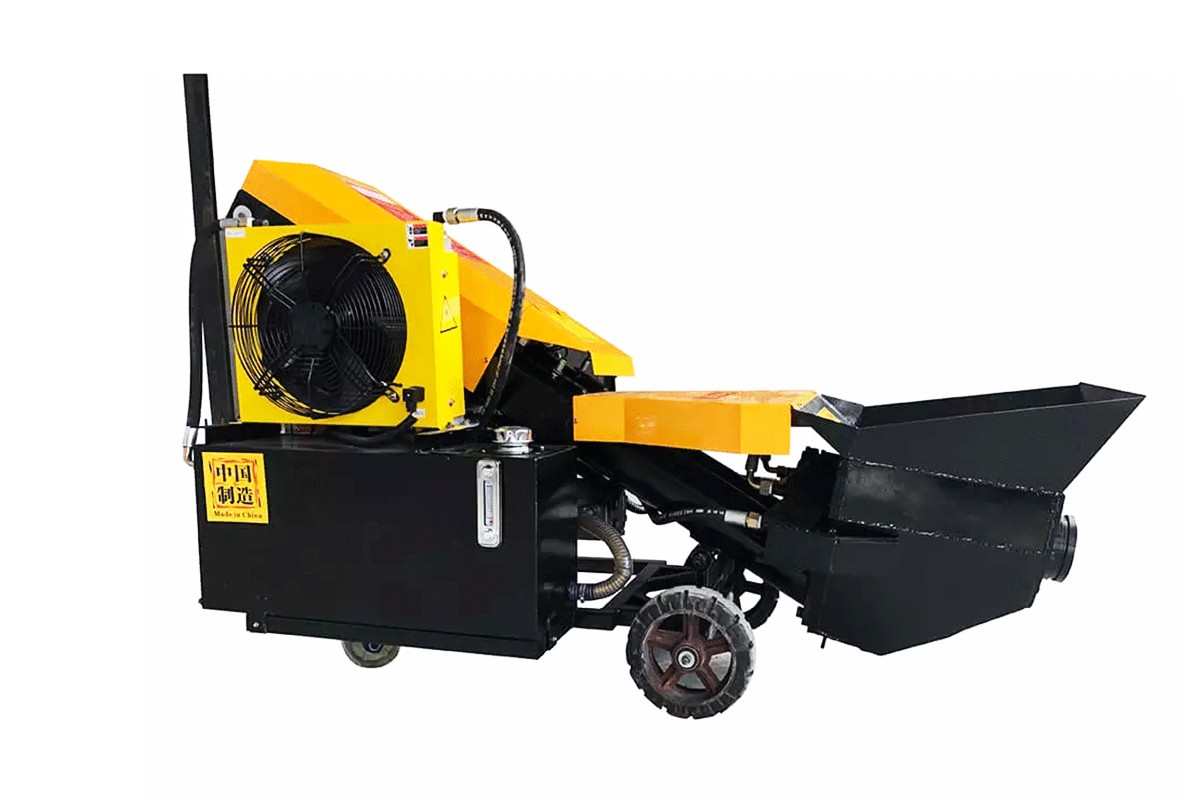

HWJP-20 Concrete Pump
Aggregate size: 15mm
Output: 8m³/h
1. High working efficiency: hydraulic pumping is adopted, with high system reliability and stable throughput.
2. Continuously adjustable injection amount: variable plunger pump is adopted for the main oil pump, and the injection speed can be freely adjusted.
3. The addition amount of accelerating agent can be continuously adjusted: it can be adjusted according to the amount of gunite.
4. Long service life of wearing parts: the service life of wearing parts of the host shall not be less than 4000M3.
5. equipped with automatic lubrication system: for the main sealing parts with automatic lubrication, grease filling amount, filling time automatic control, greatly extend the life of vulnerable parts.
6. Humanized product design: more convenient operation.
Model | HWJP-20 |
Power | 30kw |
Voltage | 380V |
Vertical delivery distance | 50m |
Horizontal delivery distance | 80m |
Output | 8m3/h |
Max.Aggregate size | 15mm |
Outlet diameter | 100mm |
Cylinder stroke | 1000mm |
Pipe diameter | 100mm |
Dimension | 3800*1000*1550mm |
Weight | 900kg |
