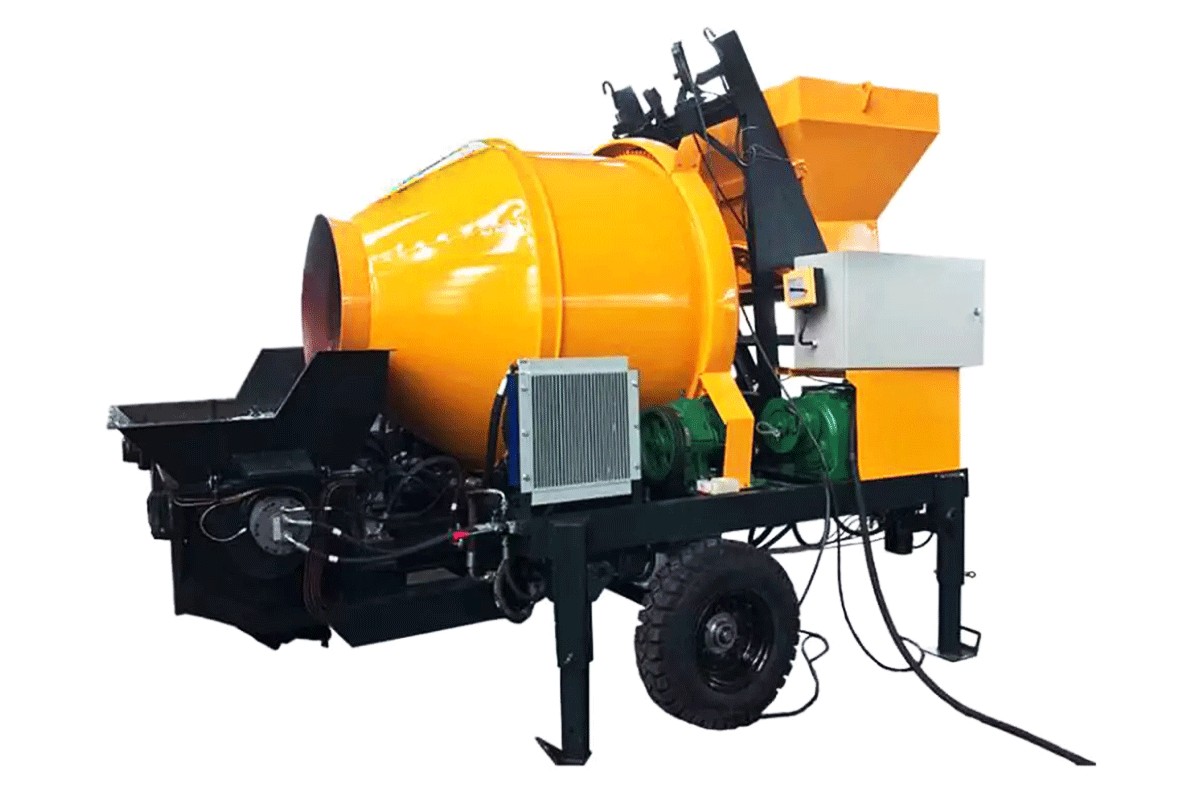

HW-JBT30-06 Concrete Mixer Pump
Max Aggregate Size: 125mm
Output: 15m³/h
The concrete mixer pump, is a traditional concrete mixers and concrete pumps together, to achieve full concrete construction process automation material, mixing, pumping in one of the small high pressure concrete pump, suitable for small and medium sized, ground transportation, such as playing a large village aggregate concrete, especially for a group of 12 layer floor, small bridges, wild place scattered site mixing of concrete construction projects.
The product can be achieved without human or trailer transitions, greatly improved work efficiency.
| Item | Unite | HW-JBT30-06 | |
Drum capacity | L | 450 | |
Hopper | capacity | L | 450 |
Filling height | mm | 1000 | |
Output pressure | Mpa | 6 | |
Thero output | M3/H | 30 | |
The delivery cylinder | mm | Φ160*1000 | |
Mixer filling model | Climbing | ||
Max aggregate diameter | mm | Φ80 | |
| Pump distance | Vertical | M | 120 |
Horizontal | M | 300 | |
Engine model | Electric power | ||
Main power (kw) | kw | Pump motor | 30 |
Concrete slump | cm | 12-23 | |
running piping | mm | Φ80,Φ100,Φ125 | |
Dimension (mm) | mm | 5000*2280*2900 | |
Weight | KG | 4000 |
