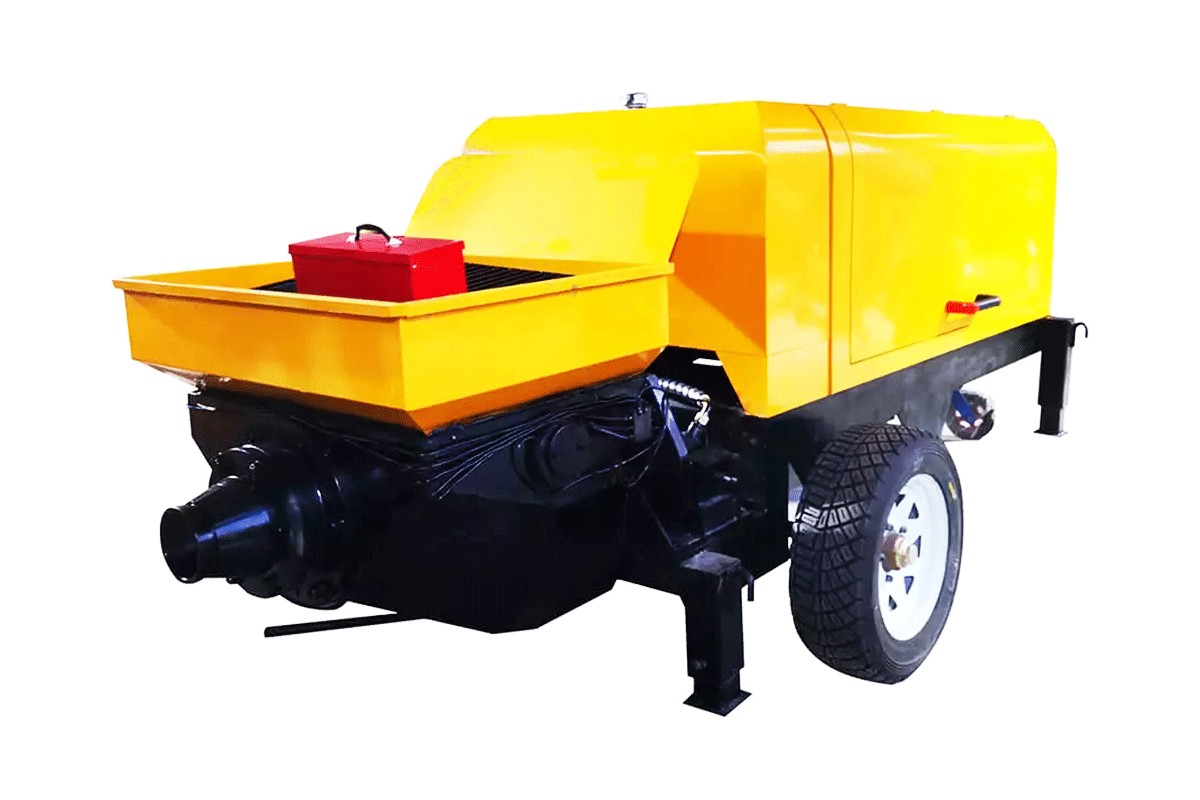

HW20-47 Concrete Pump

Factory Direct
Training on Arrival
One-year warranty
Rated Power: 47Kw
Aggregate Size: 20mm
Output: 35m³/h
Product Introduction

1. HW20-47 concrete pump is specially designed for floor heating construction.

2. This concrete conveying equipment suitable for concrete mixing in floor heating engineering large area and high efficiency construction with solidified soil filling layer or mortar filling.

3. Can be used in concrete or mortar used in construction projects, tunnels, mines, etc conveyor.

4. After installing the jet accessories, it can also be used as a shotcrete pump for concrete Spraying,mortar, refractory and green soil spray and sprinkle.


Model

HW20-47

Power

47kw

Voltage

380V

Vertical delivery distance

180m

Horizontal delivery distance

300m

Output

35m3/h

Max.Aggregate size

20mm

Outlet diameter

150mm

Cylinder stroke

1500mm

Pipe diameter

125mm

Dimension

4100*1500*1600mm

Weight

2000kg

Company Profile

Shandong Hengwang Group, founded in 2011 in the cultural city of Jining, Shandong, has grown into a comprehensive innovative technology enterprise integrating R&D, production, trade, and logistics. With a factory area exceeding 300,000 square meters and over 2,000 employees, the company completed and put into operation its billion-yuan Intelligent Manufacturing Base in 2024, reinforcing its strong manufacturing foundation.

Adhering to an "innovation-driven, quality-first" philosophy, Hengwang develops and exports over 40 categories of machinery products to more than 180 countries and regions. Holding over 200 patents and multiple international certifications, the company provides customers with integrated solutions and high-quality service, consistently striving towards its vision of building a century-old brand with outstanding value.
