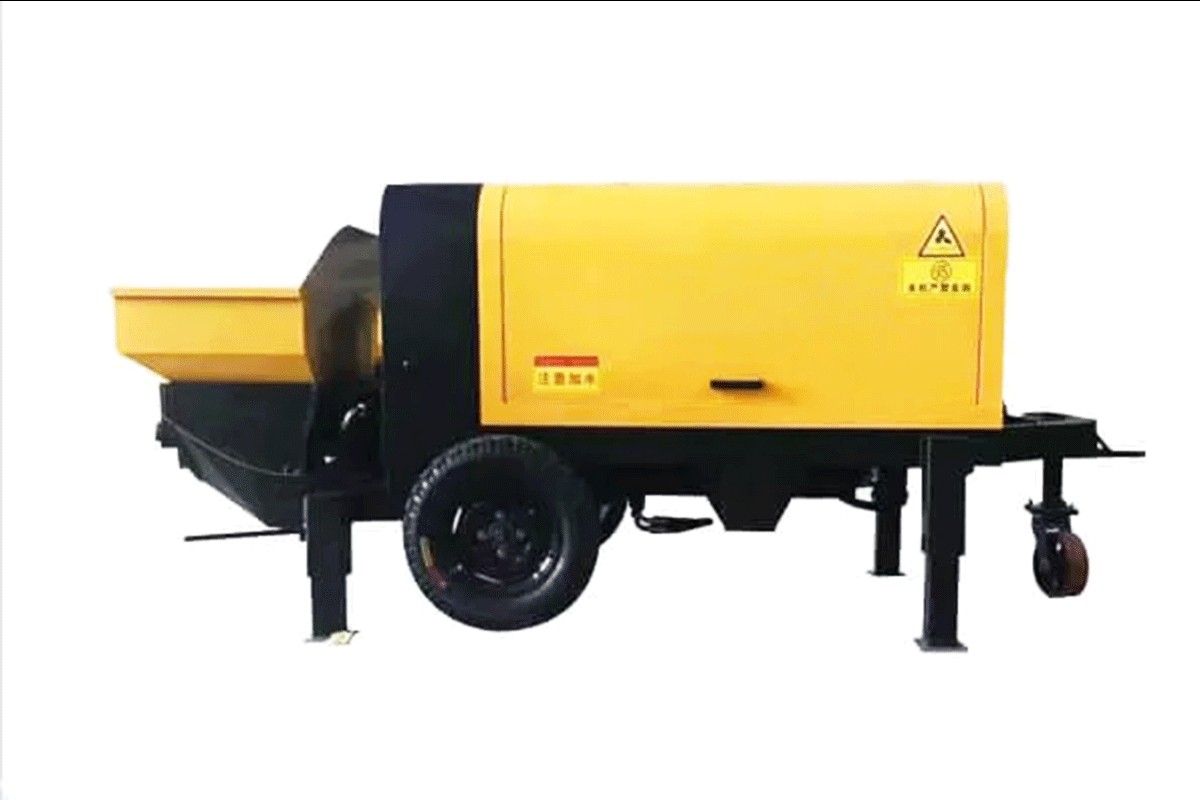

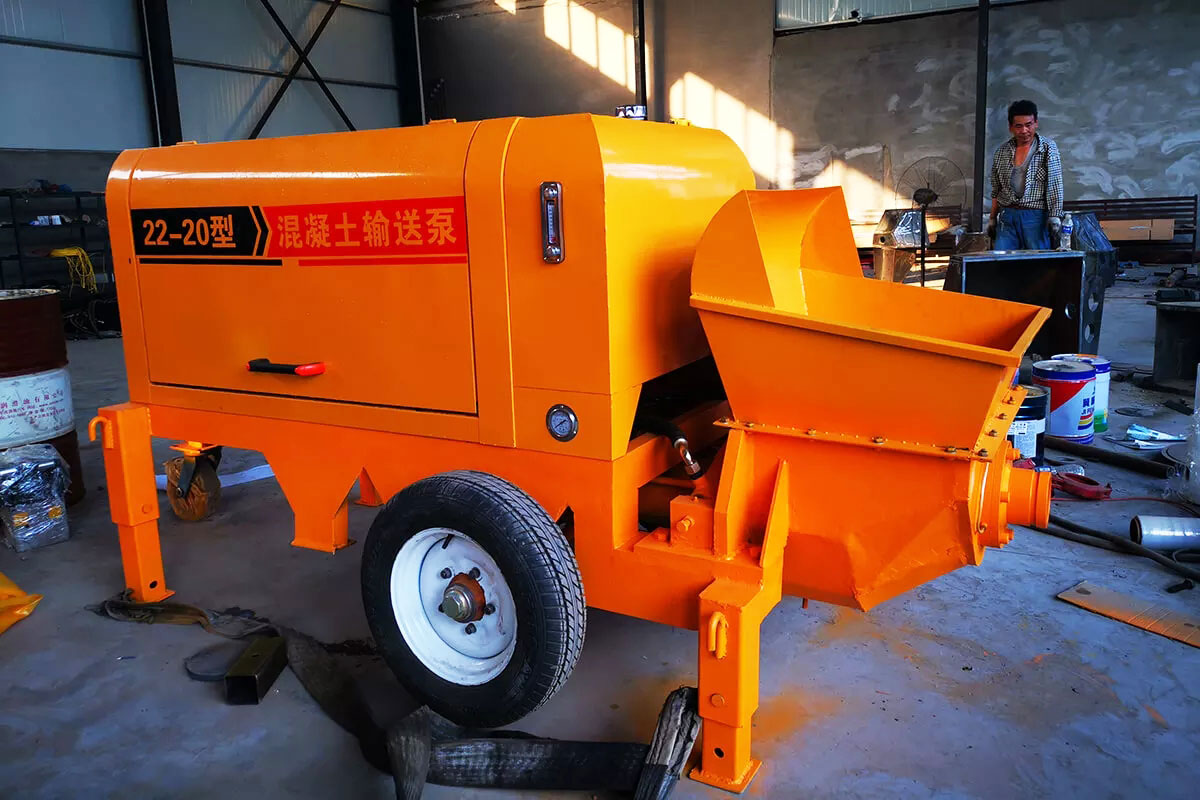

HW20-22 Concrete Pump
Aggregate size: 20mm
Output: 12m³/h
1. Advanced s-tube valve is adopted to meet the delivery of concrete;
2. The glasses plate and cutting ing are made of high hardness and wear resisting allay material, with longer service life;
3. Import main oil pump with high output pressure can meet high-rise buildings and distance transportation requirements
4. The hydraulic oil is cooled by air cooling system, which has good cooling effect and is easy to use;
Model | HW20-22 |
Power | 22kw |
Voltage | 380V |
Vertical delivery distance | 50m |
Horizontal delivery distance | 80m |
Output | 12m3/h |
Max.Aggregate size | 20mm |
Outlet diameter | 120mm |
Cylinder stroke | 650mm |
Pipe diameter | 100mm |
Dimension | 2100*780*1200mm |
Weight | 900kg |
Company Profile





Shandong Hengwang Group, founded in 2011 in the cultural city of Jining, Shandong, has grown into a comprehensive innovative technology enterprise integrating R&D, production, trade, and logistics. With a factory area exceeding 300,000 square meters and over 2,000 employees, the company completed and put into operation its billion-yuan Intelligent Manufacturing Base in 2024, reinforcing its strong manufacturing foundation.
Adhering to an "innovation-driven, quality-first" philosophy, Hengwang develops and exports over 40 categories of machinery products to more than 180 countries and regions. Holding over 200 patents and multiple international certifications, the company provides customers with integrated solutions and high-quality service, consistently striving towards its vision of building a century-old brand with outstanding value.
