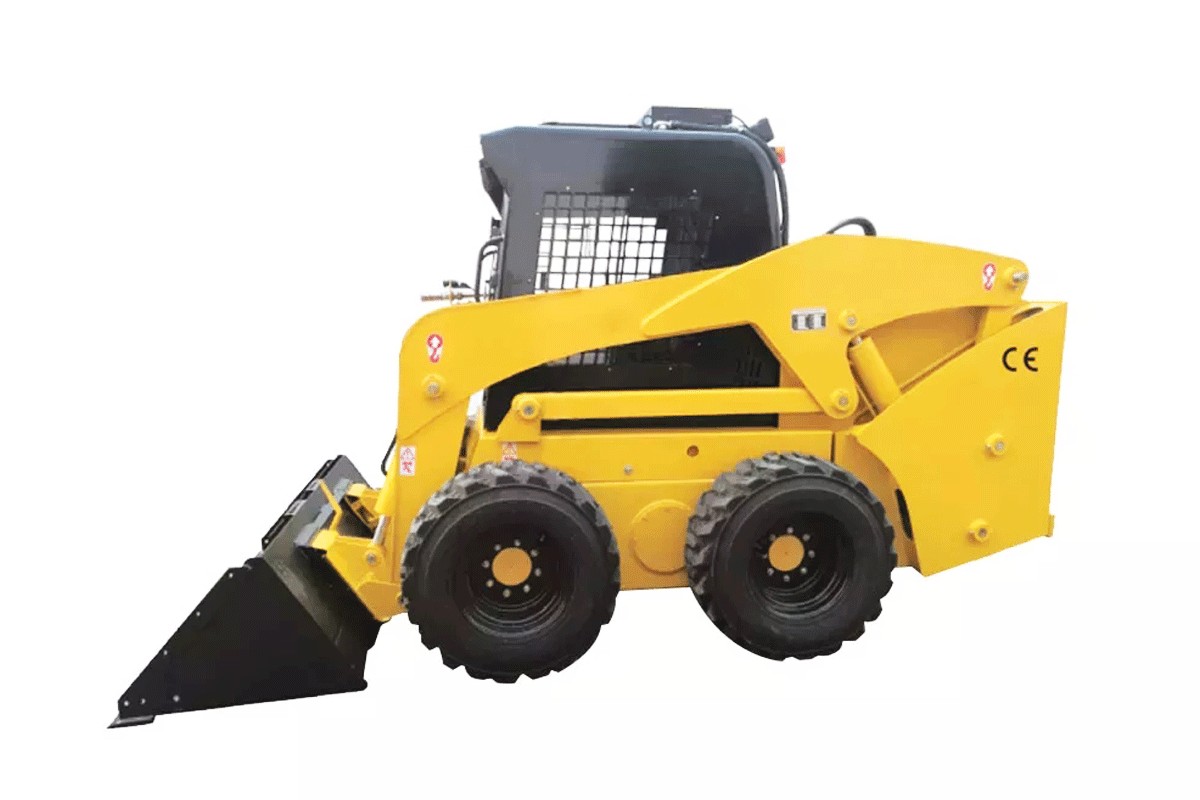

V series Skid Steer Loader
Bucket Capacity: 0.5-0.55cbm
Rated Power: 74-103kw
| Model | HW100V | HW120V |
| Operating load (kg) | 1200 | 1500 |
| Max Speed (km/h) | 12 | 0.67 |
| Rated flux (L/min) | 75 | 75 |
| High Flow Flux (L/min) | 120 | 140 |
| Tire (track) model | 12-16.5 | 12-16.5 |
| Rated power (Kw) | 74 | 103 |
| Fuel tank capacity (L) | 100 | 100 |
| self weight bucket (kg) | 4500 | 4600 |
| Bucket capacity (m3) | 0.5 | 0.55 |
| Overall operating height (mm) | 4250 | 4250 |
| Height to bucket hinge pin (mm) | 3250 | 3250 |
| height to top of cab (mm) | 2160 | 2160 |
| Height to bottom of level bucket (mm) | 3083 | 3083 |
| Overall length ithout bucket (mm) | 3100 | 3100 |
| overall length with bucket (mm) | 3800 | 3800 |
V Series Skid Steer Loader:
● The V Series represents a vertical lift model. The product incorporates the globally recognized front pull rod and rear rocker arm leveling design, ensuring that the working arm remains consistently vertical during ascent and descent.
● This series features a high-powered diesel engine, delivering robust performance. The sturdy integrated working arm is equipped with a large hydraulic cylinder, capable of generating a lifting force exceeding 3000kg. The maximum working flow can reach 140 liters/min.
Inquire now for the best price.
