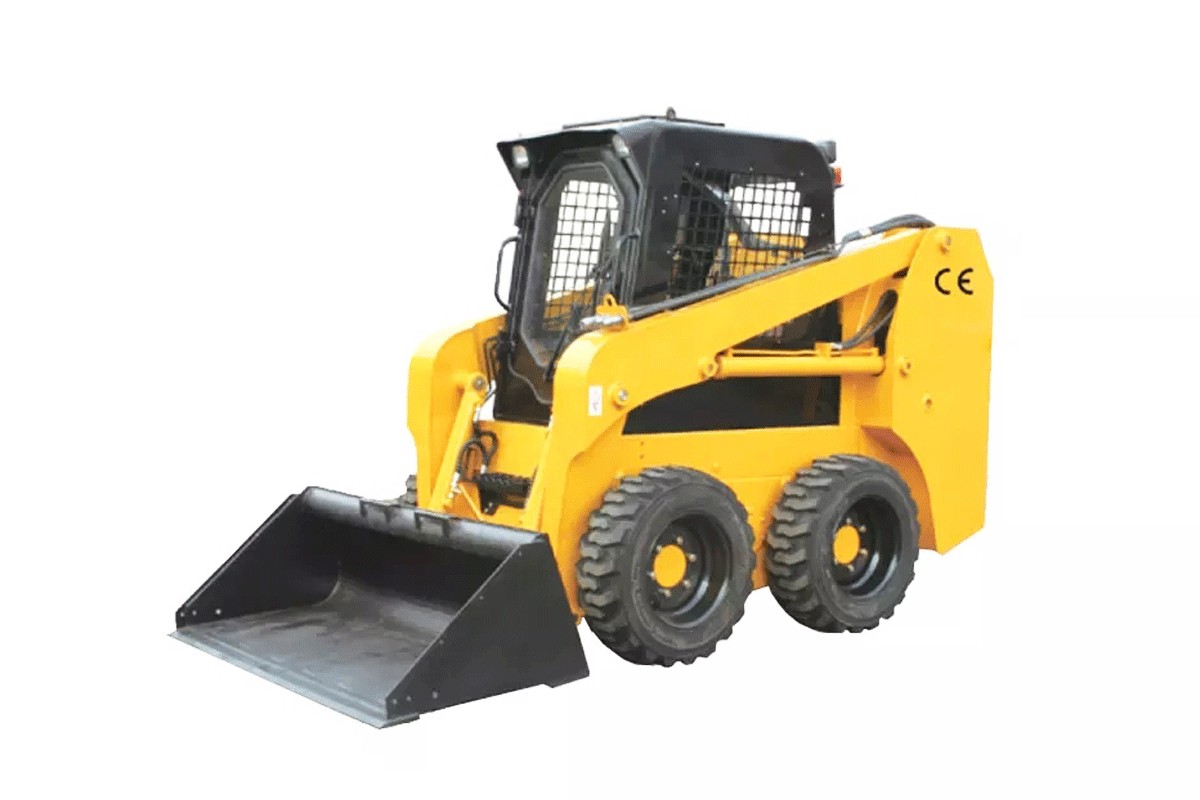

M series Skid Steer Loader
Bucket Capacity: 0.2-0.5cbm
Rated Power: 18.4-55kw
| Model/ Technical parameter | HW25M | HW25M | HW35M | HW45M | HW60M | HW65M |
| Operating load (kg) | 300 | 450 | 500 | 700 | 850 | 950 |
| Max Speed (km/h) | 9 | 10 | 10 | 12 | 12 | 12 |
| Rated flux (L/min) | 37 | 50 | 60 | 62.5 | 75 | 75 |
| Tire (track) model | 23×8.5-15 | 27×8.5-15 | 8.5-15 | 10-16.5 | 12-16.5 | 12-16.5 |
| Rated power (Kw) | 18.4 | 22 | 29.5 | 37 | 45 | 55 |
| Fuel tank capacity (L) | 25 | 45 | 60 | 70 | 70 | 80 |
| self weight bucket (kg) | 1500 | 2000 | 2300 | 2700 | 2800 | 3000 |
| Bucket capacity (m3) | 0.2 | 0.3 | 0.3 | 0.4 | 0.4 | 0.5 |
| Overall operating height (mm) | 3126 | 3430 | 3300 | 3980 | 4130 | 4130 |
| Dumping angle at maximum height (° ) | 36 | 43 | 40 | 40° | 40 | 40 |
| Dumping height (mm) | 1882 | 1971 | 2050 | 2380 | 2400 | 2400 |
| Dumping reach (mm) | 458 | 477 | 790 | 750 | 750 | 750 |
● This series features a sleek design, narrow host width, and excellent maneuverability. It utilizes a luffing working arm to ensure optimal load-bearing capacity within a smaller width.
● Among all sliding machine products, this series boasts the smallest main machine width, meeting the demands of specialized operations. Additionally, the M series offers enhanced ultra-low height products, with the lowest height measuring only 1.4 meters.
● The M series products incorporate high-quality hydraulic components sourced from Europe and America. The control system utilizes a pilot servo system, delivering precise and rapid responsiveness. It represents the ideal option for operations in confined spaces.
Inquire now for the best price.
Company Profile
Shandong Hengwang Group, founded in 2011 in the cultural city of Jining, Shandong, has grown into a comprehensive innovative technology enterprise integrating R&D, production, trade, and logistics. With a factory area exceeding 300,000 square meters and over 2,000 employees, the company completed and put into operation its billion-yuan Intelligent Manufacturing Base in 2024, reinforcing its strong manufacturing foundation.
Adhering to an "innovation-driven, quality-first" philosophy, Hengwang develops and exports over 40 categories of machinery products to more than 180 countries and regions. Holding over 200 patents and multiple international certifications, the company provides customers with integrated solutions and high-quality service, consistently striving towards its vision of building a century-old brand with outstanding value.
