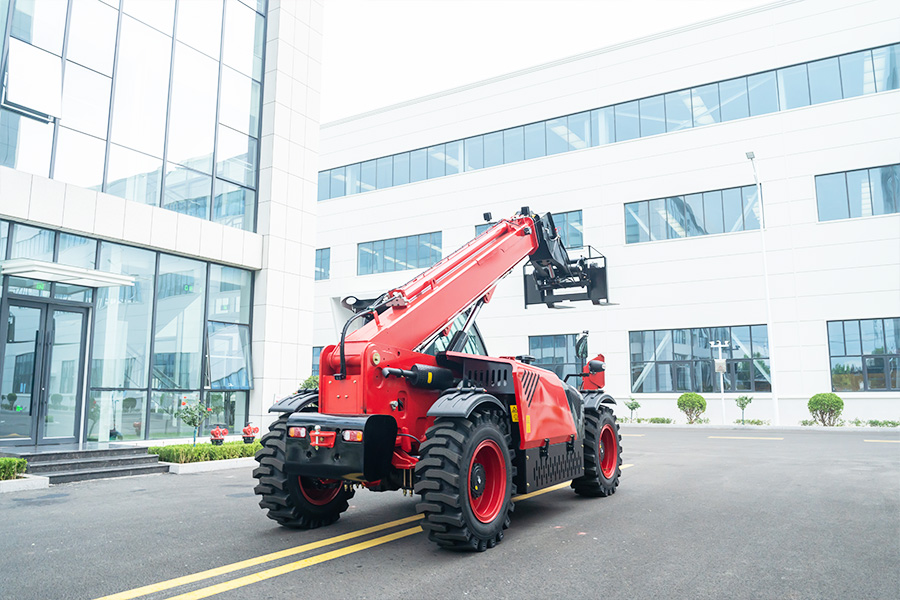

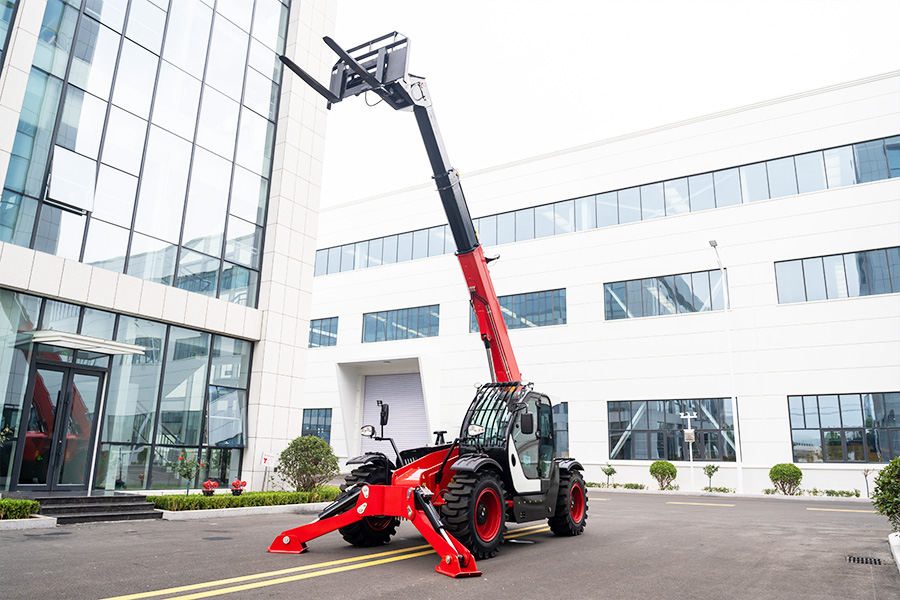

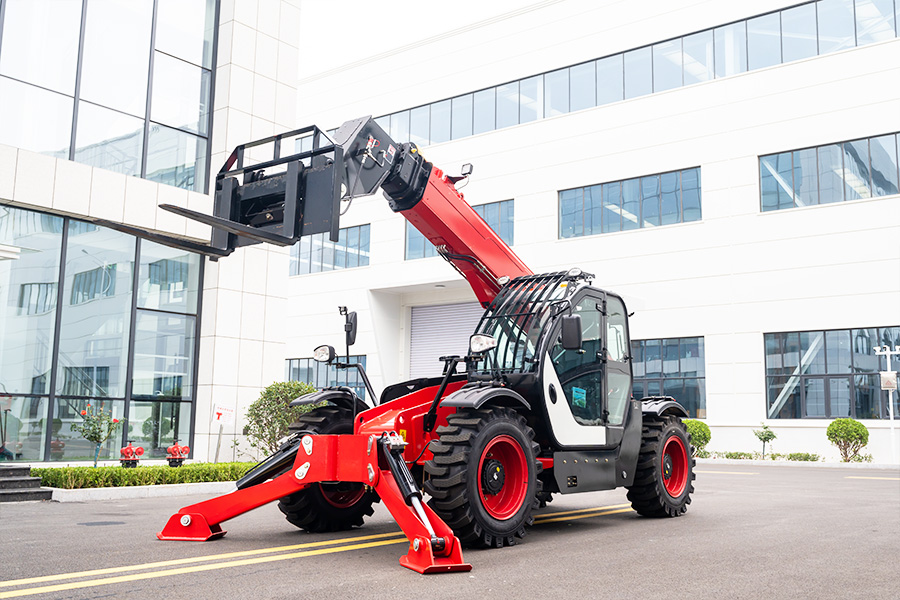

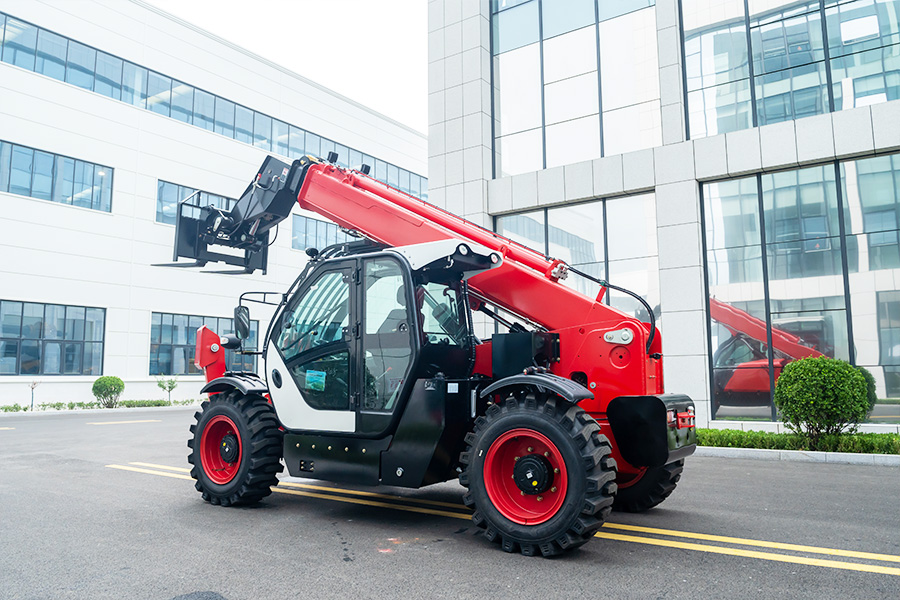

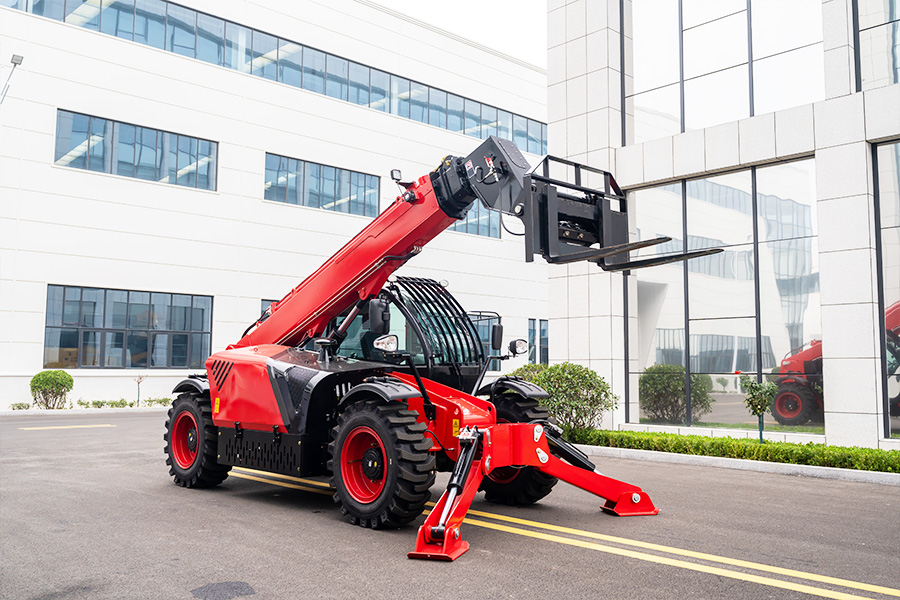

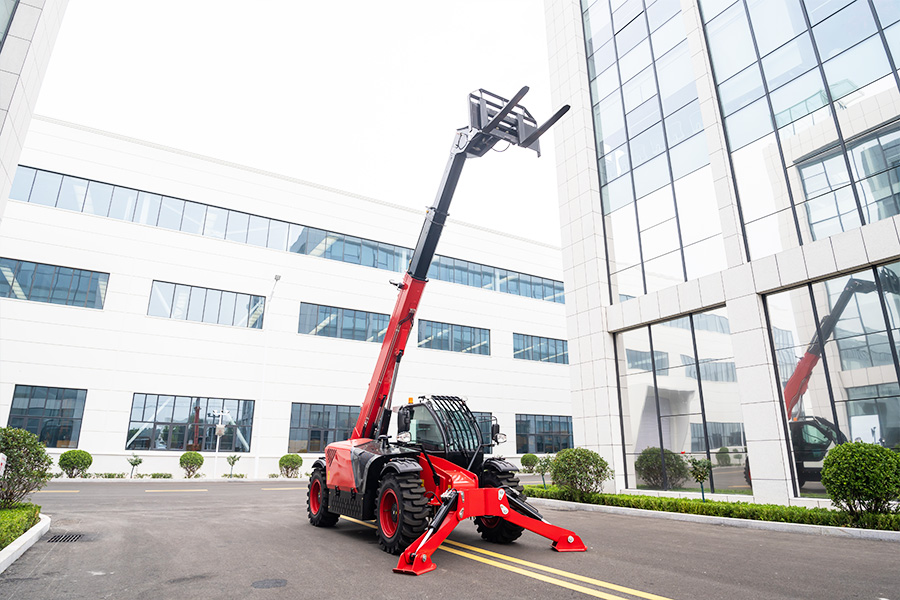

HWR4018 Telescopic handler
Power:140 kW
L× W× H: 7500mm×2420mm×2810mm
Unladen weight(with fork):13000 kg
Telehandlers will take your material handling productivity to new heights. Telehandlers offer the extended reach and superior lift capacity of a heavy-duty telescoping boom combined with a range of attachments. It will quickly become your go-to machine for farming and ranching applications, construction, landscaping, snow removal, and much more.
Telehandlers are designed durable – and built to last – with a combination of tough construction, high-quality materials and features that maximize reliability. Look to the rigid frame, sealed engine compartment and side-by-side cooling design and know it’s ready for the most severe conditions.
| Main technical parameters | |
| Rated load | 4000KG |
| Operating weight | 13000KG |
| Maximum lifting height | 1750±50mm |
| Maximum reach distance | 1300±50mm |
| Engine | |
| Engine model | Cummins National III QSF3.8-C140 |
| Cooling type | Water cooling |
| Rated power | 104(kW) |
| Total exhaust of cylinder | 3.8L |
| Rated speed | 2200(r/min) |
| Max. Torque | 540(N.M) |
| Hydraulic system | |
| Working pump displacement | Variable displacement piston pump 63cc/rev |
| Working pump pressure | 265bar |
| Walking pump | 75cc/rev variable piston pump |
| Walking pump pressure | 400bar |
With their compact size, lift capacity, maneuverability and attachment versatility, there’s little that telehandlers can’t do. Adding one to your fleet can help you take your business to new heights.
Fill out the form to get a quote!
Company Profile
Shandong Hengwang Group, founded in 2011 in the cultural city of Jining, Shandong, has grown into a comprehensive innovative technology enterprise integrating R&D, production, trade, and logistics. With a factory area exceeding 300,000 square meters and over 2,000 employees, the company completed and put into operation its billion-yuan Intelligent Manufacturing Base in 2024, reinforcing its strong manufacturing foundation.
Adhering to an "innovation-driven, quality-first" philosophy, Hengwang develops and exports over 40 categories of machinery products to more than 180 countries and regions. Holding over 200 patents and multiple international certifications, the company provides customers with integrated solutions and high-quality service, consistently striving towards its vision of building a century-old brand with outstanding value.
