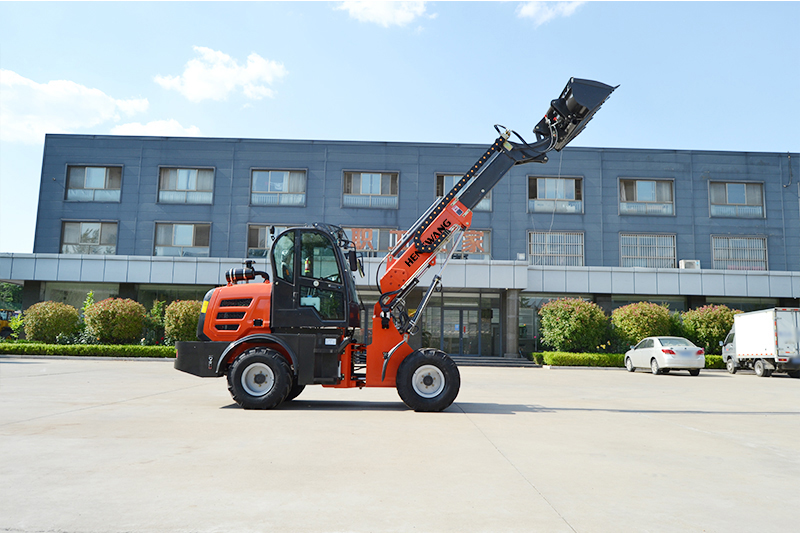

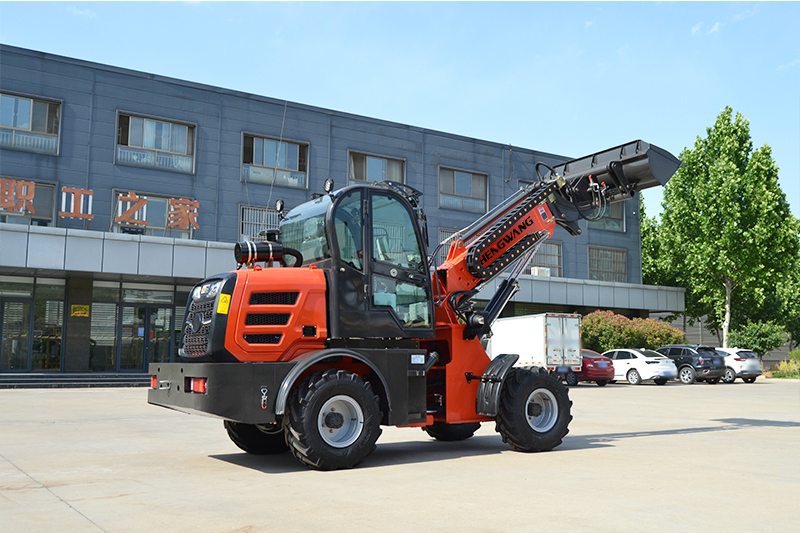

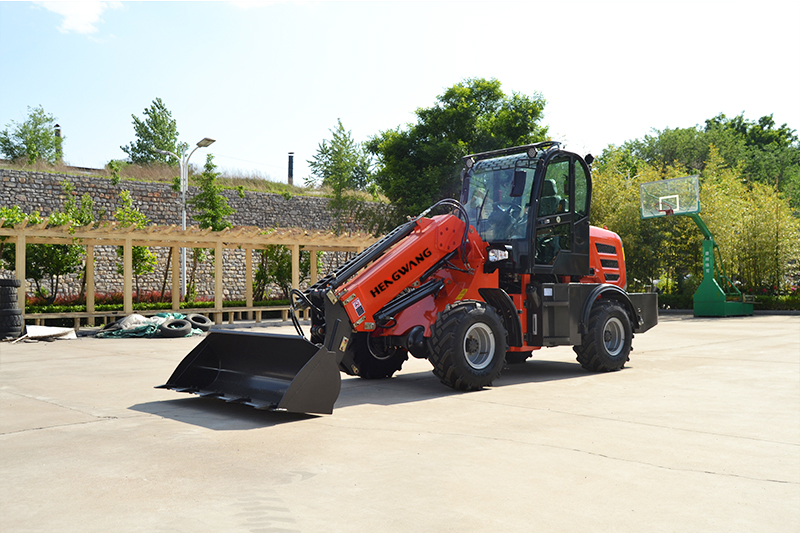

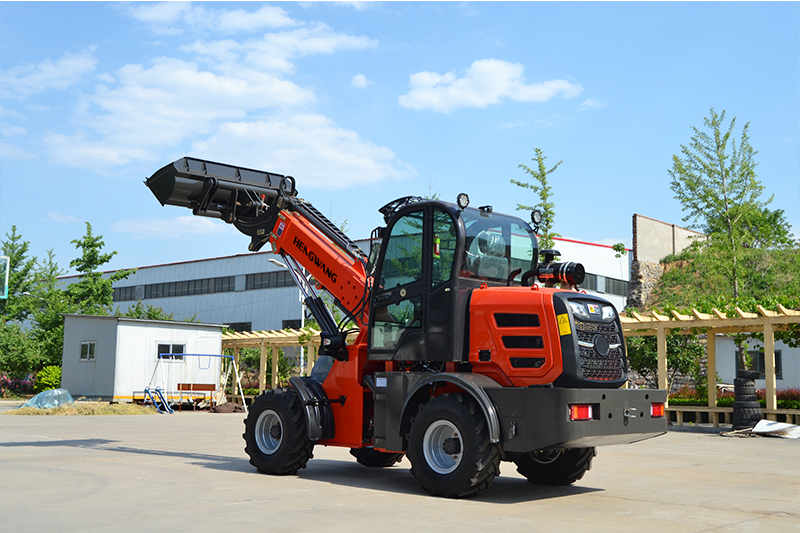

HW1500 Telescopic Loader
Bucket Capacity: 0.65m³
Rated Power: 42Kw
Main parameters
HW1500 | |||
1.Main technical specification | |||
Bucket Capacity(m³) | 0.65 | ||
Operating Weight(kg) | 4200 | ||
Bucket Width(mm) | 1600 | ||
Bucket type | Heavy-duty bolt on teeth | ||
Rated Load(kg) | 1500kg (including attachment or bucket) | ||
Wheel base(mm) | 2355 | ||
Track(mm) | 1400 | ||
Driving Mode | Hydraulic converter, four wheel drive | ||
Overall Dimensions(mm) | LxWxH:5900x1800x2710 | ||
Lifting to bucket hinge pin Height(mm) | 4200 | ||
2.Engine Details | |||
Model | YUNNEI YN27 Engine | ||
Engine Type | In-line arrangement, water-cooled, four-cycle diesel,turbocharged Engine | ||
Rated Power(kw) | 42 | ||
Rated Speed (rpm) | r/p.min | ||
Optional Engine | XINCHAI / YANMAR | ||
3.Transmission System | |||
Hydraulic converter + gearbox+drive shaft + hub reduction axles | |||
4.Operating Specifications | |||
Steering System | Articulated Frame with hydraulic power steering | ||
Min Turning Radius(mm) | 4700 | ||
Driving System | Hydraulic converter, four wheel drive | ||
European quick coupling system | |||
Joystick control | |||
5.Brake System | |||
Service Brake | Safer air assist disc brake braking system | ||
Parking Brake | Hand operated（Disc brakes） | ||
6.Tire | |||
Model: | 23.5/70-16 | ||
Width(mm) | 330 | ||
Diameter(mm) | 920 | ||
Optional Model | 12-16.5 / 31X15.5-15 | ||
Company Profile
Shandong Hengwang Group, founded in 2011 in the cultural city of Jining, Shandong, has grown into a comprehensive innovative technology enterprise integrating R&D, production, trade, and logistics. With a factory area exceeding 300,000 square meters and over 2,000 employees, the company completed and put into operation its billion-yuan Intelligent Manufacturing Base in 2024, reinforcing its strong manufacturing foundation.
Adhering to an "innovation-driven, quality-first" philosophy, Hengwang develops and exports over 40 categories of machinery products to more than 180 countries and regions. Holding over 200 patents and multiple international certifications, the company provides customers with integrated solutions and high-quality service, consistently striving towards its vision of building a century-old brand with outstanding value.
