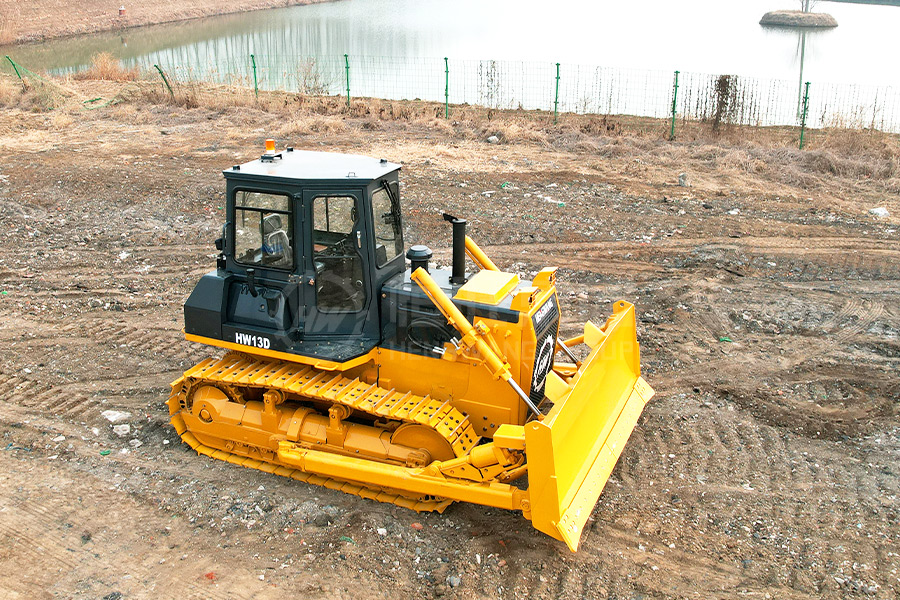

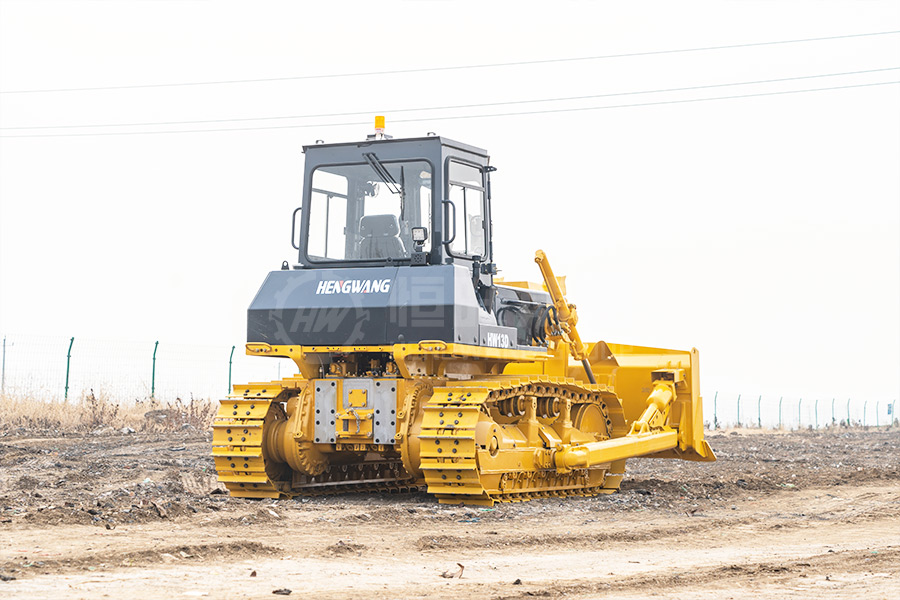

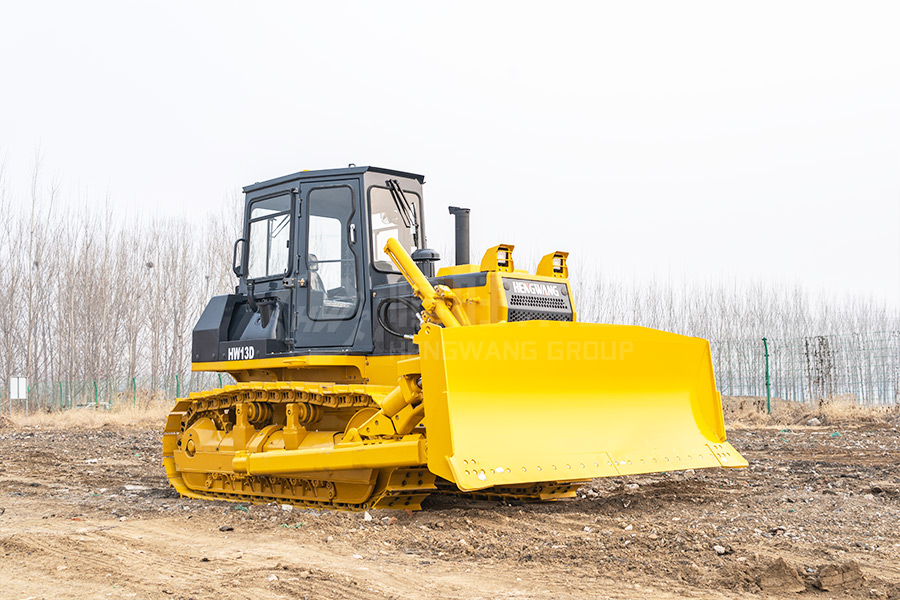

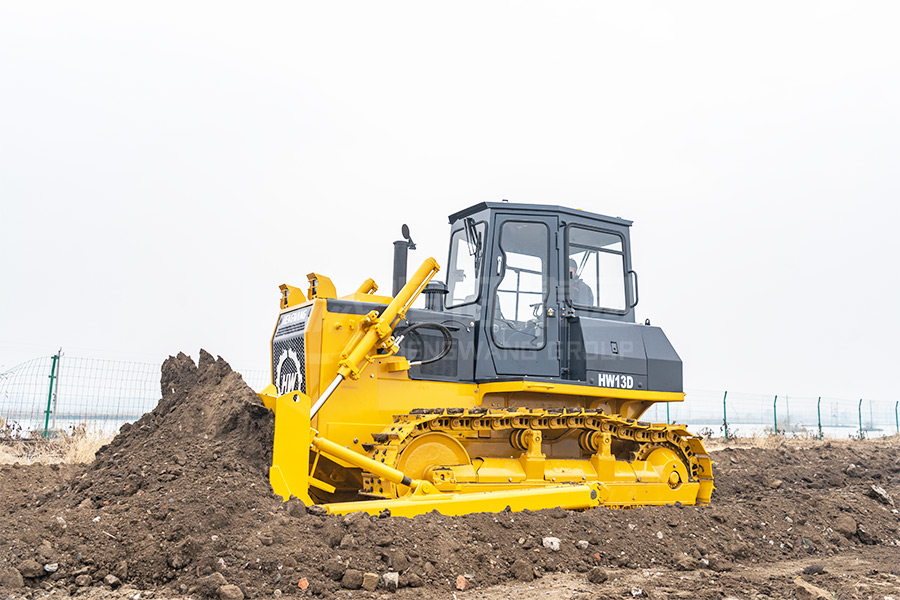

HW13 Bullzoder
Operating Weight: 13,700kg
Engine Model:SC8D143G2B1/SC8DK
Parameter name | HW13 (Standard version) | HW13S (Wetland version) |
Operating weight (Kg) | 13700 | 14900 |
Ground pressure (kPa) | 53.8 | 38.4 |
Engine model | SC8D143G2B1 (China-II) /SC8DK (China-III) | SC8D143G2B1 (China-II) /SC8DK (China-III) |
Rated power/rated speed (kW/rpm) | 105/1900 | 105/1900 |
Overall dimensions of machine (mm) | 4492*3185*2950 | 4492*3510*3000 |
Forward speed (km/h) | F1: 0-3.2 F2:0-5.9 F3:0-9.8 | F1: 0-3.2 F2:0-5.9 F3:0-9.8 |
Reversing speed (km/h) | R1:0-3.9 R2:0-7.1 R3:0-11.9 | R1:0-3.9 R2:0-7.1 R3:0-11.9 |
Center distance of track (mm) | 1880 | 1880 |
Width of track shoes (mm) | 460 | 700 |
Ground length (mm) | 2365 | 2365 |
Working Adaptability
● Our self-developed, well-established product chassis system is suitable for a wide range of challenging working conditions, offering exceptional stability and reliability.
● The product boasts a long ground length, high ground clearance, reliable driving, and excellent maneuverability.
● Depending on the specific working conditions, the equipment can be fitted with an environmental sanitation blade, ripper, or universal blade, ensuring optimal adaptability for different tasks. Additionally, optional LED working lamps enhance visibility during nighttime operations, thus increasing safety and reliability.
Inquire now for the best price.
Company Profile
Shandong Hengwang Group, founded in 2011 in the cultural city of Jining, Shandong, has grown into a comprehensive innovative technology enterprise integrating R&D, production, trade, and logistics. With a factory area exceeding 300,000 square meters and over 2,000 employees, the company completed and put into operation its billion-yuan Intelligent Manufacturing Base in 2024, reinforcing its strong manufacturing foundation.
Adhering to an "innovation-driven, quality-first" philosophy, Hengwang develops and exports over 40 categories of machinery products to more than 180 countries and regions. Holding over 200 patents and multiple international certifications, the company provides customers with integrated solutions and high-quality service, consistently striving towards its vision of building a century-old brand with outstanding value.
Certificate
